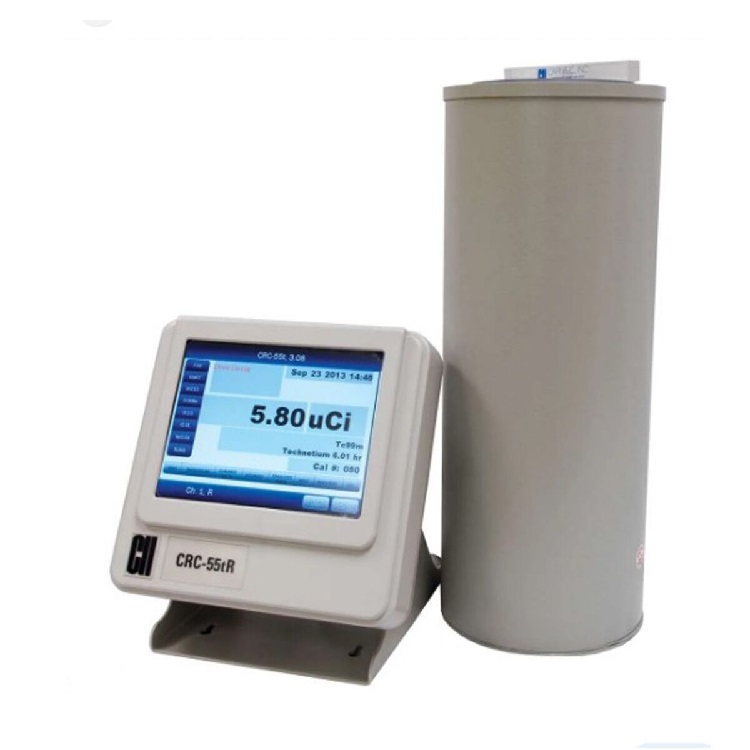

Capintec 5130-3234, Dose Calibrator by Mirion Technologies, CRCR-55tR Dose Calibrator provides the speed and accuracy you need.

Shipping is between 3-6 weeks, per Mirion

Item#: CAP-5130-3234-EA
$9,860.00
Item(s) Total: $9,860.00
  • PRODUCT DETAILS
  • GOT QUESTIONS
  • RECENTLY VIEWED


  • Product Details
    • Dealer # 5130-3234
    Manufacturer # 5130-3234
    Brand CRC ®
    Manufacturer Capintec
    Application Dose Calibrator
    Console Dimensions
  • Height: 42 cm (9.5 in.)
  • Width: 23 cm (9.0 in.)
  • Depth: 27 cm (10.5 in.)
  • Weight: 3.4 kg (7.5 lb)
    • Chamber Dimensions
  • Height: 43.8 cm (17.25 in.)
  • Diameter: 17.2 cm (6.76 in.)
  • Weight: 13.6 kg (30 lb)
  • Well Diameter: 6.1 cm (2.4 in.)
  • Well Depth: 25.3 cm (10.0 in.)
  • Cable Length1: 3.7 m (12 ft)
    • Cables
  • Power1: 1.8 m (6 ft)
  • Printer: 1.8 m (6 ft)
    • Ionization Chamber
  • Type: Thin wall, deep well, high pressure
  • Fill Gas: 12 atm Ultra-Pure Argon
    • Measurement Range
  • Type: Auto Ranging
  • Activity: 6 Ci (222 GBq) Tc99m max, 2 Ci (74 GBq) F18 max
  • Resolution: .001 MBq (.01 ?Ci), max.
    • Display Screen
  • Type: 8 in. VGA LCD color touch screen display
  • Format: Direct reading in Bq or Ci
  • Bq/Ci Reading: User selectable or fixed
  • Values Displayed: Nuclide name (Atomic symbol,
  • Mass number), calibration number
    • Electrometer
  • Accuracy: Better than ± 2%
  • Linearity: Within ± 2%
  • Response Time: Within 2 sec, 4 to 16 sec for very low
  • activity samples
    • Repeatability of Measurement
  • Within ± 1% within 24 hours during which time the
  • calibrator is continuously in operation
    • Tests
  • Diagnostics: Full test of program, system memories
  • Daily: Auto Zero, Auto Background Adjust, Data Check,
  • Accuracy and Constancy, Voltage Test
  • Enhanced: Linearity, Geometry, Strip QC
    • Nuclear Data
  • Nuclide Keys: 28 programmable keys
  • System Memory: Over 80 nuclides
  • (cal number and half-life)
    • Standard Source Data
  • System Memory: Co-57, Co-60, Ba-133, Cs-137
  • standard sources
    • Molybdenum-99 Assay
  • Methods: CapMac and canisters
  • Measured Values: Mo-99 elution, Tc-99m,
  • Tc-99m/Mo-99 Ratio

    • Features

    • 8" color VGA touch screen display
    • Single or optional second plug-and-play chamber capability
    • Chamber can be placed 100 feet from the readout unit
    • Bilingual (English/Spanish) Software
    • On-screen display of Nuclide Name, Number, Activity, Unit of Measure and Calibration Number
    • Large character, high visibility display
    • Over 80 Nuclides with half-lives in memory
    • Full alpha numeric touchpad
    • Built-in dose calibration, quality control and self-diagnostics
    • Automated QC including constancy and linearity programs
    • Compatible with Nuclear Medicine Management Systems via USB
    • Optional printer for full size NRC records and patient labels for syringes and vials.
    • USB/PC communications
    • Software upgrade via USB or flash drive
    • USB printer capability
    • Automated Geometry and Linearity Testing
    • Capable of dual chambers
    • Supports exchange of chambers with the CRC®-55tPET Dose Calibrator
    • Chamber energy range: 15 keV to 3 MeV
