Footswitch - Foot Control, F/75lp (75-017) -
We only sell to businesses, clinics, government facilities, individuals may contact us by email - info@go3a.com
Item#: Mid-9A236001-EA
$1,541.24
Footswitch Foot Control For 75lp (75-017), Sold as 1/Ea - Midmark
- PRODUCT DETAILS
- GOT QUESTIONS
- RECENTLY VIEWED
Price shown is sold as EA/1
| Dealer # | 352323 |
| Manufacturer # | 9A236001 |
| Manufacturer | Midmark |
| Application | Footswitch |
| For Use With | Midmark Ritter 75LP Exam Table |
| Specifications | Compact |
Features
- This product is required to be reported under California Proposition 65

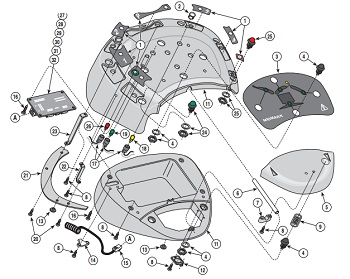

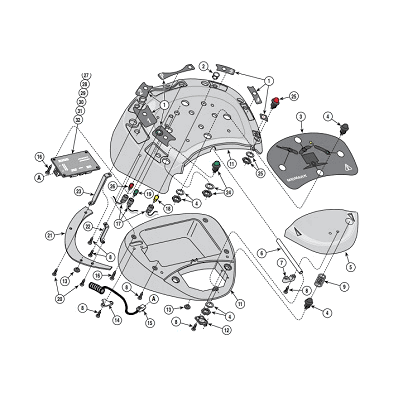

| Used on units with Serial Number HZ1000, JY1000 and LS1000 thru Present | |||
| Item | Part # | Description | Qty. |
| 9A236001 | 4 Position Footswitch-Programmable (Includes Items 1 thru 32) | 1 | |
| 1 | 061-0674-00 | Footswitch Decal Set | 1 |
2 | 015-1211-00 | Conxrite Lens | 11 |
| 3 | 061-0673-00 | Foot Switch Label | 1 |
| 4 | 015-1230-02 | Switch-Black [8” Leads] (Incl. Nut) | 11 |
| 015-1205-03 | Black Cap | 1 | |
| 5 | 053-0918-00 | Foot Control Pedal | 1 |
| 6 | 057-0468-00 | Pivot Shaft | 1 |
| 7 | 053-0921-00 | Pedal Cap | 2 |
| 8 | 042-0168-00 | Screw | 16 |
| 9 | 025-0054-01 | Compression Spring | 2 |
| 10 | 053-0920-00 | Programmable Foot Control Top | 1 |
| 11 | 053-0917-00 | Foot Control Base | 1 |
| 12 | 053-0940-00 | Switch Cover | 2 |
| 13 | 053-0947-00 | Stem Bumper | 13 |
| 14 | 050-4028-00 | Strain Relief Bracket | 1 |
| 15 | 015-0839-00 | Cord Set | 1 |
| 16 | 040-0168-01 | Screw | 6 |
| 17 | 015-1218-00 | Conxrite Connector Assy [4” Leads] | 7 |
| 015-1218-01 | Conxrite Connector Assy [8” Leads] | 4 | |
| 18 | 015-1235-01 | Yellow LED | 1 |
| 19 | 015-1235-00 | Green LED | 9 |
| 20 | 040-0006-97 | Screw | 4 |
| 21 | 050-4077-00 | Bottom Cover | 1 |
| 22 | 050-4075-00 | Side Bracket | 2 |
| 23 | 050-4076-00 | L. H. Front Bracket (Shown) | 1 |
| 050-4076-01 | R. H. Front Bracket (Not Shown) | 1 | |
| 24 | 015-1230-04 | Switch-Green [5” Leads] (Incl. Nut) | 1 |
| 015-1205-05 | Green Cap | 1 | |
| 25 | 015-1230-03 | Switch-Red [5” Leads] (Incl. Nut) | 1 |
| 015-1205-04 | Red Cap | 1 | |
| 26 | 015-1235-02 | Red LED | 1 |
| 27 | 015-1168-03 | Programmable Foot Control PC Board | 1 |
| 28 | 015-0865-01 | 10 Position Connector (Not Shown) | 1 |
| 29 | 015-0865-02 | 12 Position Connector (Not Shown) | 1 |
| 30 | 015-0865-03 | 24 Position Connector (Not Shown) | 1 |
| 31 | 015-1231-00 | 4 Position Recept. Hsg. (NotShown) | 1 |
| 32 | 015-0013-02 | Cable Tie (NotShown) | 1 |
| Always Specify Model & Serial Number | |||
