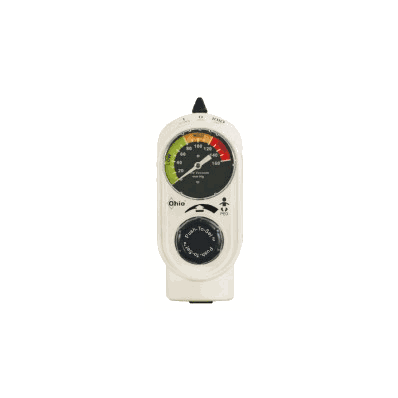

Ohio Medical#8701-L271-908 Push-To-Set Intermittent Suction Unit, Diamond Adapter, Fittings: DISS Male & Overflow Safety Trap, DISS Wing Nut & Gland, PEDIATRIC, LIGHT BLUE, sold as Each

Features

• The Push-To-SetTM Intermittent Suction Unit (PTS-ISU) offers dual modes, an intermittent mode for nasogastric drainage and C.A.S.S. and a continuous mode for tracheal, pharyngeal, surgical suctioning or chest drainage. The unique, silent, patented unilogic timing module provides a reliable, quiet means of cycling the regulator on and off during intermittent suctioning.
• The Pediatric and Neonatal Push-To-SetTM Intermittent Suction Unit has a peak vacuum limit feature to prevent adjusting the vacuum too high. This device is ideal for neonatal and pediatric patients or sensitive applications where limiting the peak vacuum level is important.
• Pneumatic, non-magnetic Unilogic Module for quiet, reliable operation
• Stat Set-Up - Intermittent mode starts in the “ON” cycle
• Quick-To-Max - 1 to 2 turns to full wall vacuum for emergency resuscitation (Adult)
• Fully adjustable timing cycles (3 to 30 seconds), On and Off independently adjustable
• Factory preset timing cycles set at 15 seconds On, 8 seconds Off (range: +/- 3 seconds)
• Intermittent Mode limited to ASTM Standard 8 LPM flow
• Modular Components – Simplifies service
• Durable design and construction, few mechanical parts
• Positive Pressure Safety Relief Valve - safely vents accidental positive pressure (O2 , Medical Air) away from patient
• Available with a Digital Gauge (± 1% Gauge Accuracy)
• Adult: Safe, moderate to high flow rates
• PED/NEO: Safe, low to moderate flow rates
• PED/NEO: Service adjustable peak vacuum limit may be set from 80 to 130 mmHg
