Dealer # | M1-870-5FG |
Manufacturer # | M1-870-5FG |
Manufacturer | Western Medical |

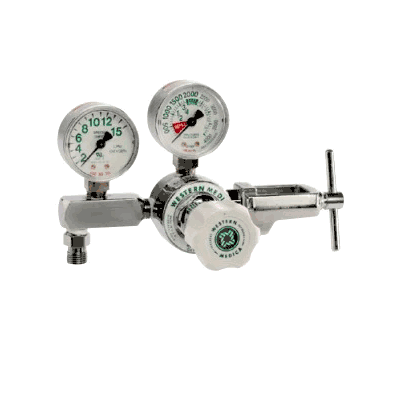

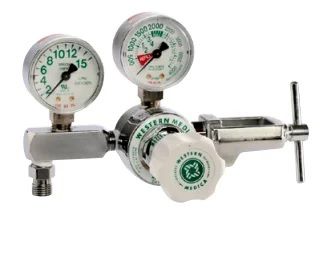

Application | Oxygen Flow Control Regulator |
Prod Type | Flow Control |
Gas Type | Oxygen |
Inlet Connection | CGA 870 |
Outlet Connection | DISS 1240 |
Body Material | Chrome Plated Brass |
Approx Dimensions | 9.33″L x 6.20″H x 3.66″D (refer to spec sheet) |
Max Inlet Pressure | 3000 psi |
2″ Inlet Pressure Gauge, Range | 0-4000 psig |
2″ Outlet Pressure Gauge, Range | 0-120 psig |
Gauge Diameter | 2 inch |
